FeCrAl heating alloy

Iron-chromium-aluminum alloy (FeCrAl) is a high-performance iron-based electric heating material with high resistivity, low temperature coefficient of resistance, high operating temperature, and excellent oxidation and corrosion resistance in high-temperature environments. This material is widely used in chemical industry, metallurgy and high-temperature heating equipment to provide durable and stable heating solutions. Heating elements made of iron-chromium-aluminum alloy help optimize energy efficiency and reduce industrial production costs.

0Cr27Al7Mo2

0Cr27Al7Mo2 (Russian brand number Х27Ю7М2) is a ferritic iron-chromium-aluminum-molybdenum special alloy. By adding 2% molybdenum (Mo), the material has extremely high creep resistance and mechanical stability at high temperatures. With a maximum continuous operating temperature of up to 1400°C, it is the material of choice for industrial high-temperature furnaces, laboratory equipment and extremely demanding heating elements.

Iron-Chromium-Aluminum Alloy

0Cr27Al7Mo2

Request a Quote

✓ ISO 9001 Quality
✓ COC & Test Certificates
✓ Established in 2002
✓ OEM & Custom Sizes

1
Direct Factory Pricing

Buy direct from the mill at factory prices — no trading markups, no middlemen.

2
Flexible Payment & Global Delivery

T/T, L/C and other international payment terms; small orders shipped in 10-30 days worldwide from Jiangsu, China.

3
Standards Compliance with MTC

ASTM, DIN, EN and GB compliant grades, with material test certificates including chemical analysis per lot.

4
Custom Sizes & Samples

Wire, strip, tube, plate and rod produced to your drawings, with qualification samples available on request.

5
Export Experience Since 2002

Supplying alloy materials to Europe, the Americas, Asia and the Middle East since 2002, with export documentation support.

6
Engineer Technical Support

Grade selection, tolerance confirmation and application support from our engineering team before you order.

Specifications

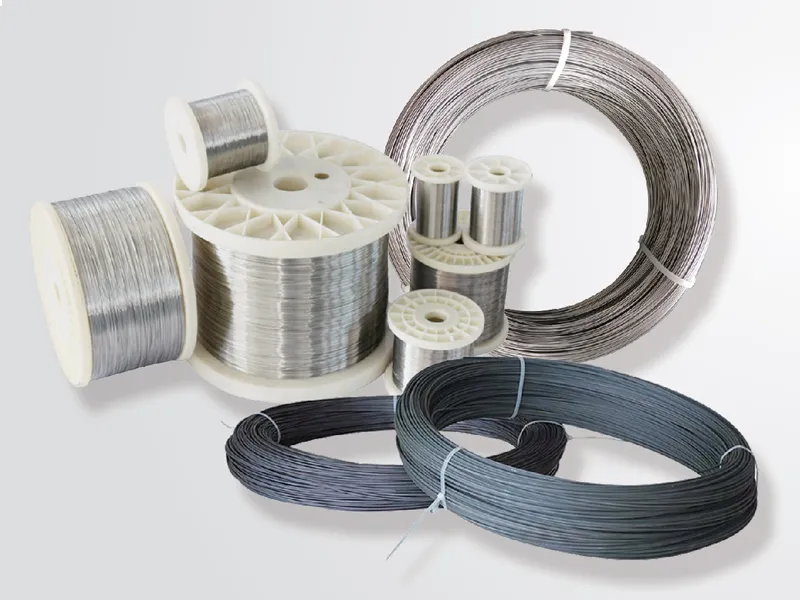

Wire 0.05-7.5 mm

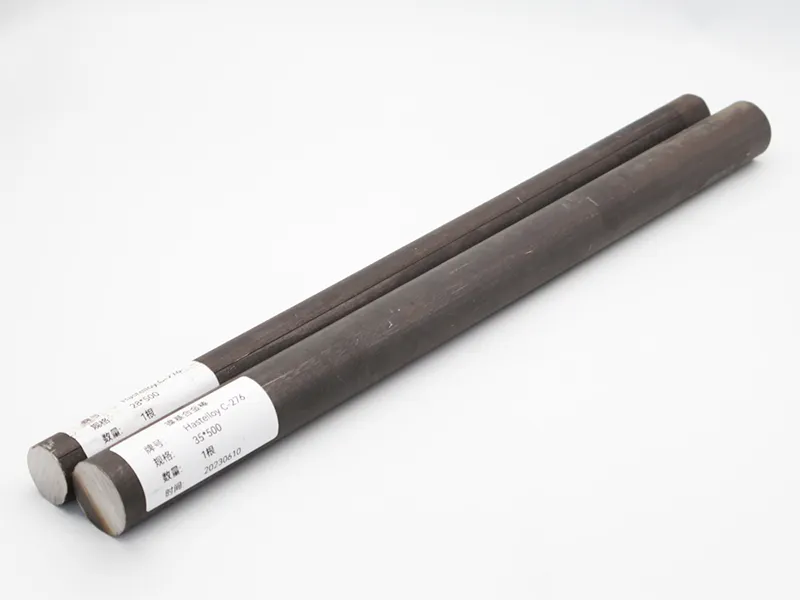

Rod 8-50 mm
Flat Wire (0.05-0.35)*(0.5-6.0) mm

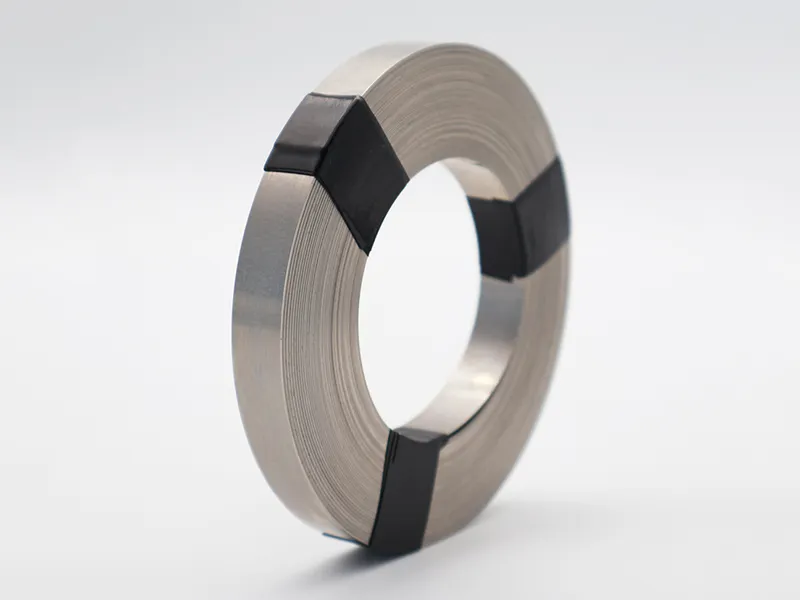

Strip/Foil (0.5-2.5)*(5-180) mm

Chemical Composition

Chromium (Cr): 26.5-27.8
Aluminum (Al): 6.0-7.0
Other Additions: Opportune
Iron (Fe): Rest
Molybdenum (Mo): 1.8-2.2

Physical & Mechanical Properties

Grade: 0Cr27Al7Mo2
Max. Service Temperature (°C): 1400
Resistivity at 20℃ (μΩ·m): 1.53
Density (g/cm³): 7.1
Thermal Conductivity (KJ/m.h.ºC): —
Coefficient of Lines Expansion (α×10⁻⁶/20~1000ºC): 16
Melting Point (°C): 1520
Tensile Strength (N/mm²): 680-830
Elongation at Rupture (%): >10
Variation of Area (%): 65-75
Bending Frequency (F/R): >5
Hardness (H.B.): 200-260
Continuous Service Time (Hours/ºC): ≥50/1350
Micrographic Structure: Ferrite
Magnetic Properties: Magnetic

Supply Capability

Item	Details
Lead Time	Samples 5-10 days; production 15-30 days
MOQ	Small trial orders accepted
Samples	Available on request
Packaging	Export-standard coil spools / wooden cases
Certificate	COC with chemical composition analysis
Payment	T/T, L/C

Request a Quote

Project Support

Need this alloy for a demanding application?

Real-world qualification for the Industrial sector: tight tolerances, batch consistency and on-time delivery.

Discuss a Similar Project

Frequently Asked Questions (FAQ)

Why can 0Cr27Al7Mo2 reach 1400℃? What does molybdenum do?

0Cr27Al7Mo2 (Russian standard Х27Ю7М2) strengthens the matrix by adding about 2% molybdenum. It still has strong creep resistance and mechanical stability at a high temperature of 1400°C, and the components are not easy to deform and sag. It is the first choice material for industrial high-temperature furnaces, laboratory equipment and extremely demanding heating elements. It is also the grade with the highest temperature range in the iron-chromium-aluminum group.

What are the melting point, resistivity and density of 0Cr27Al7Mo2?

How to distinguish the temperature resistance levels of 0Cr27Al7Mo2 and 0Cr21Al6Nb?

What is the chemical composition range of 0Cr27Al7Mo2? Why is aluminum so high?

0Cr27Al7Mo2 contains chromium 26.0~28.0%, aluminum 6.0~7.5%, molybdenum 1.5~2.5%, and iron as the balance. High chromium and high aluminum ensure the formation of a dense enough aluminum oxide protective film at 1400°C and maintain stable resistance. Molybdenum is responsible for high temperature strength; its aluminum content is the highest in the group, and the oxidation resistance limit is also increased accordingly.

What equipment is 0Cr27Al7Mo2 suitable for? What specifications can be supplied?

0Cr27Al7Mo2 is suitable for industrial high-temperature furnaces, laboratory equipment and extremely demanding heating elements, such as 1400℃-class electric heating wires in high-temperature heat treatment furnaces and test electric furnaces. We can supply wire/heating wire 0.05~7.5mm, rod 8~50mm, flat wire/flat strip and precision strip, with tensile strength 630~780N/mm² and elongation greater than 12%.
